SE HF-360 XP 160m to 6m TOP BAND High Power 1kW Vertical Antenna

Hover over the image to zoom

SE HF-360 XP 160m to 6m TOP BAND High Power 1kW Vertical Antenna

SE-HF 360 XP 160m to 6m Top Band Fibre Glass High Power 1kW Vertical antenna

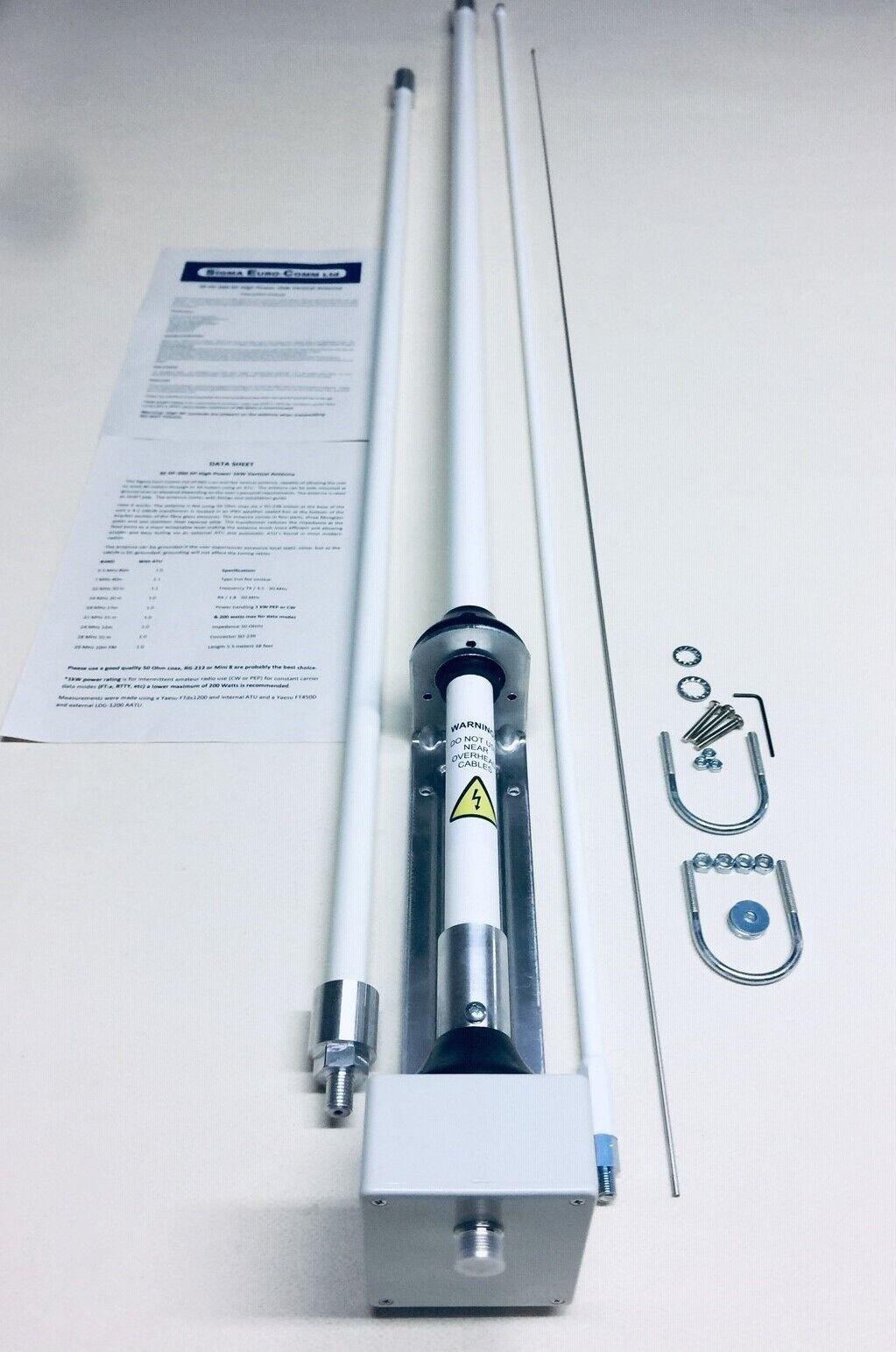

The Sigma Euro-Comm Ltd HF360 is an end fed vertical antenna, capable of allowing the user to work 160 meters through to 10 meters using an ATU found in most modern radios & 6 meter with the use of an external ATU.  The antenna can be pole mounted at ground level or elevated depending on the user’s personal requirements. The antenna is rated at 1kW* pep.  The antenna comes with fixings and installation guide.

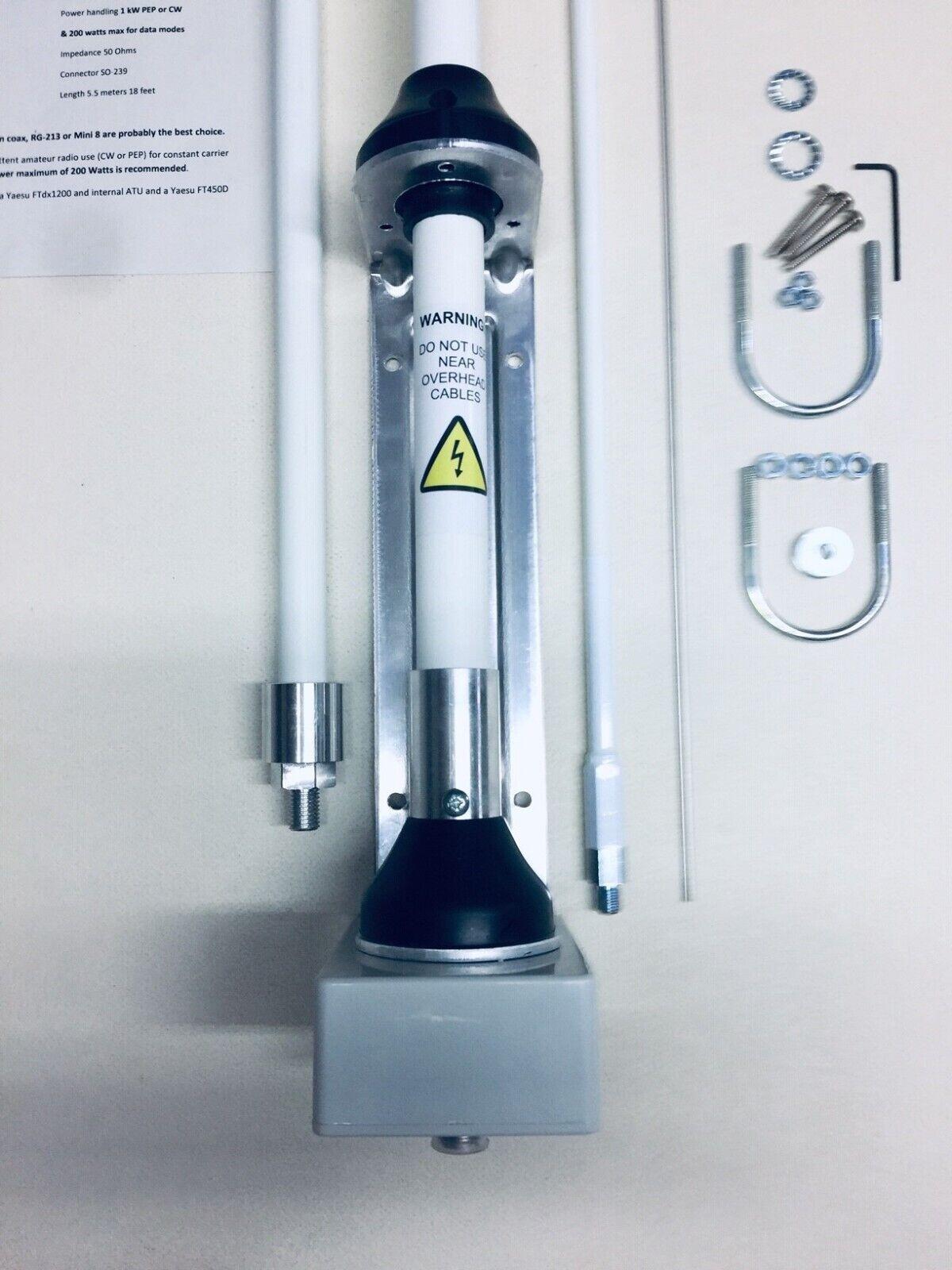

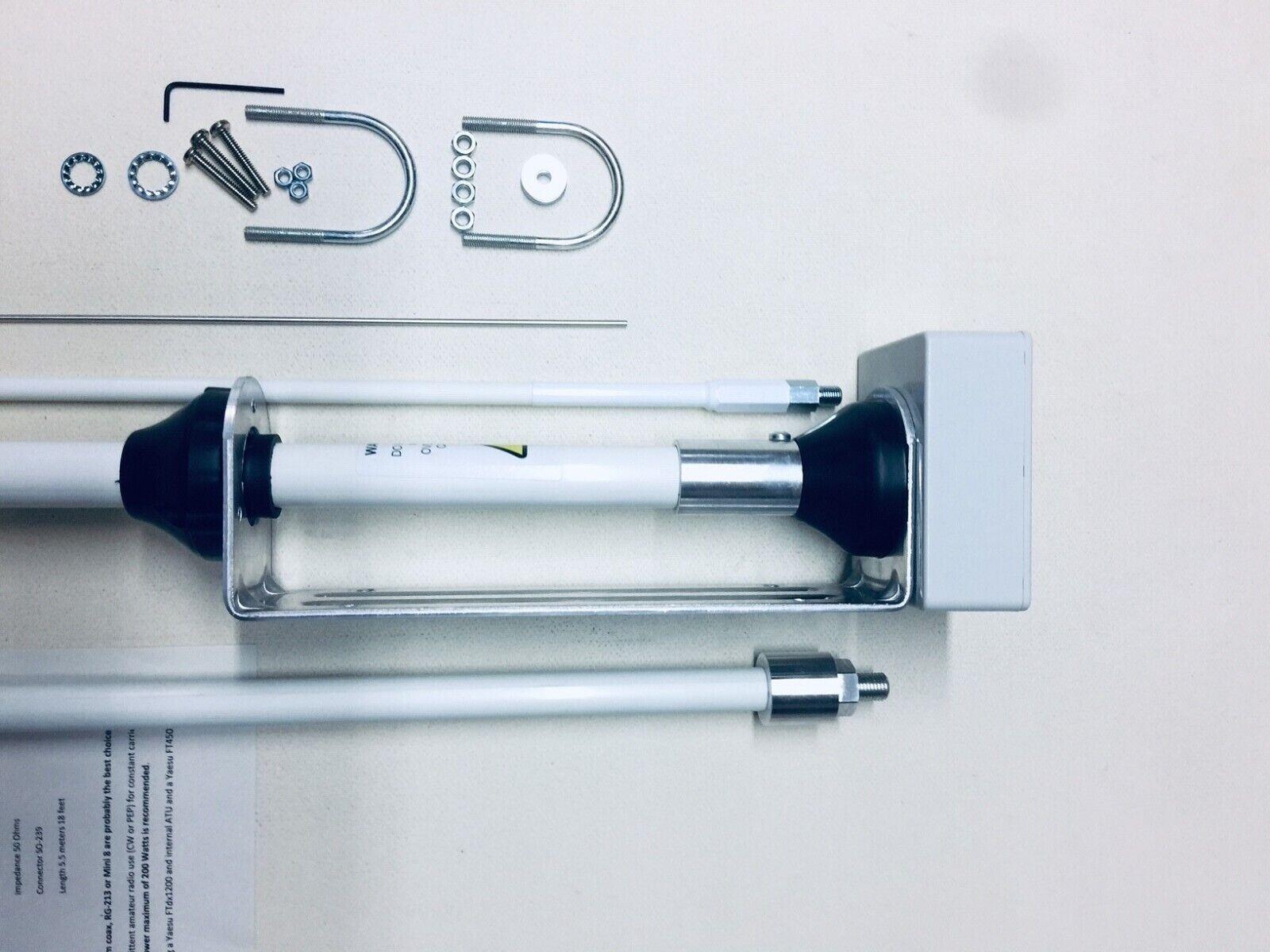

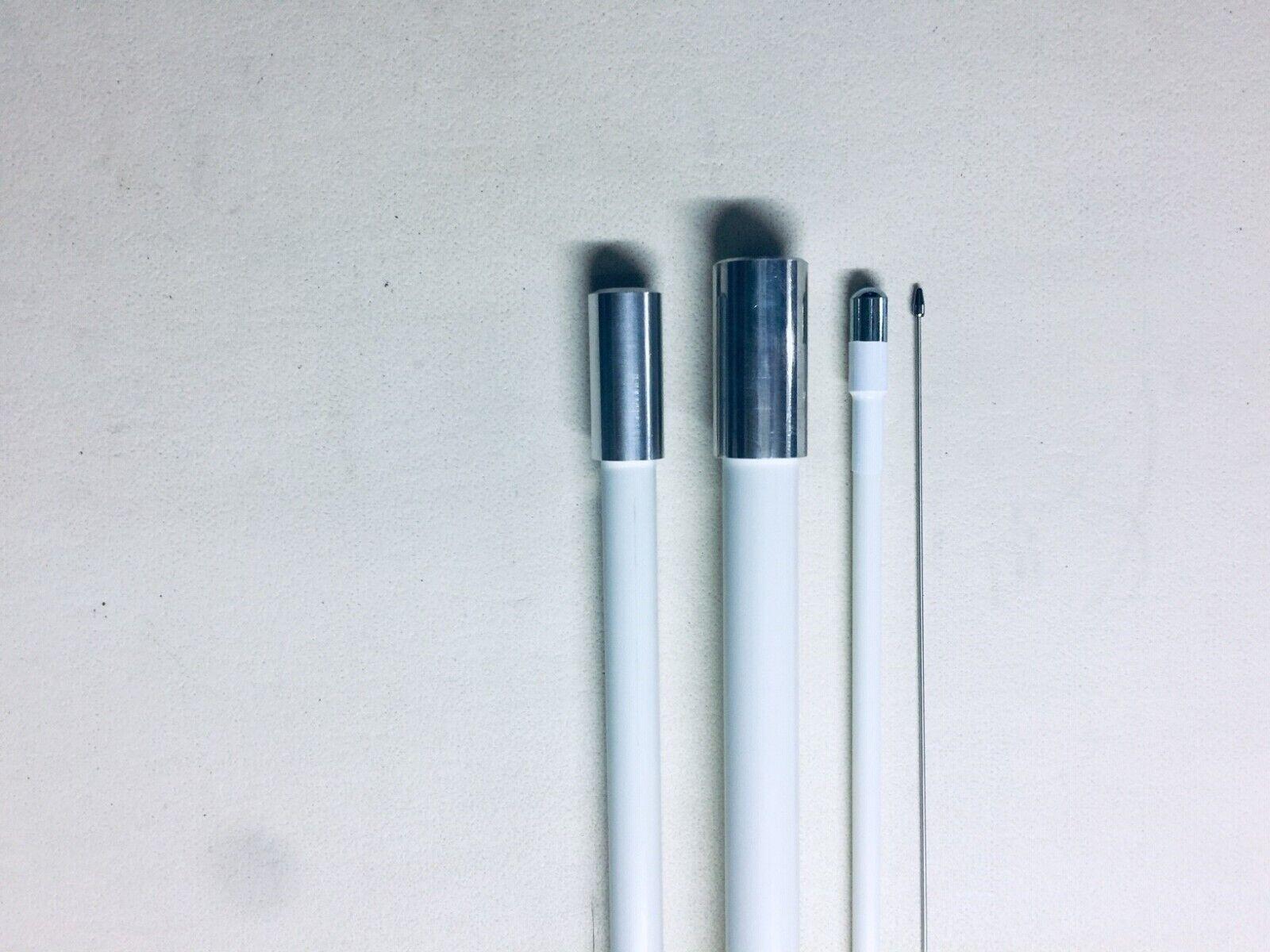

How it works: The antenna is fed using 50 Ohm coax via a SO-239 socket at the base of the unit a 4:1 UNUN transformer is located in an IP65 weather sealed box at the bottom of the bracket section of the fibre glass elements. The antenna comes in four parts, three fibreglass poles and one stainless steel tapered whip. The transformer reduces the impedance at the feed point to a more acceptable level making the antenna much more efficient and allowing proper and easy tuning via an external ATU and automatic ATU’s found in most modern radios.  The antenna can be grounded if the user experiences excessive local static noise, but as the UNUN is DC grounded: grounding will not affect the tuning ratios.


Band             With ATU

1.8 MHz               1.3

3.5 MHz 80m       1.0

5 MHz 60m          1.1                                                  Specifications

7 MHz   40m        1.1                                                  Type End fed vertical

10 MHz 30m        1.2                                                   Frequency TX / 1.8 - 52 MHz

14 MHz 20m        1.0                                                  RX / 1.8 - 55 MHz

18 MHz 17m        1.0                                                  Power handling 1 kW PEP or CW

21 MHz 15m        1.0                                                  & 200 watts max for data modes

24 MHz  12m       1.0                                                   Impedance 50 Ohms

28 MHz  10m       1.0                                                   Connector SO-239

29 MHz  10m       1.0                                                   Length 5.5 meters 18 feet

50 MHz 6m           1.3  1.3 (External ATU )


Please use a good quality 50 Ohm coax, RG-213 or Mini 8 are probably the best choice.

*1kWpower rating is for intermittent amateur radio use (CW or PEP) for data modes (FT-x, RTTY, etc) or constant carrier data modes a lower maximum of 200 Watts is recommended.

*If you are using a high-power amplifier it is essential that an external ATU is used between the antenna and the amplifier, otherwise damage may occur.
